Description

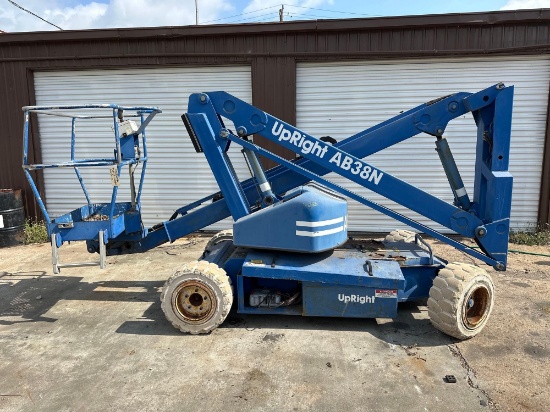

Upright AB38N Boom Lift
Upright AB38N Boom Lift
Model: AB38N
S/N: 1924-1999
Year: N/A
Location: Lawndale
General specifications:
Max. platform height.: 38'
Max. platform reach: 18' 4"
Max. platform load: 475 lbs.
Unladen weight: 9140 lbs.
Max. lateral force: 90 lbs.
Max. wind speed: 28 mph
Max. chassis inclination: 0 deg.
Max. gradeability: 36 %
Max. hyd. pressure: 2600 psi
Max. forward speed: 2.5 mph
Nominal power: 5.4 HP
Note: Needs motor repaired
Note: All specifications subject to verification
Loading Fee: $250

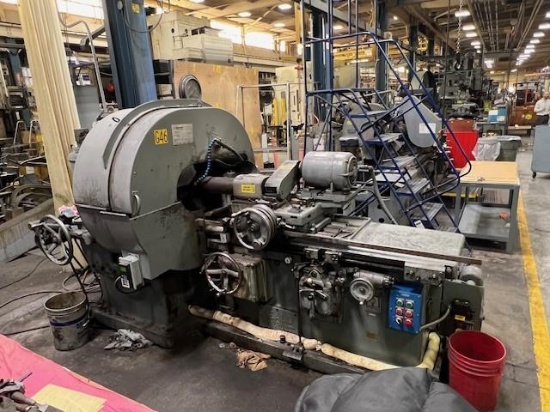

Heald Model 72A I.D. Internal Grinder
Model: 72A
S/N: 21598
Year: N/A
Location: Lawndale
General specifications:
Swing inside chuck guard: 52"
Face plate dia.: 42"
Swing in gap: 17"
Workhead adj.: 8" (F - B)
Gap: 17"
4-position stop for workhead
Power table feed
Power cross feed for the I.D. spindle
Workhead updated with Marathon Electric motor and electronic var. speed control
Heald Red Head spindle, on machine (type 151G-4, 3000 rpm)
Heald Red Head spindle, off machine (Model 407, 6000 rpm, rebuilt by GCH [Job # 1-6034])
Coolant tank
Note: Machine rebuilt by Pfeifer Machine in the 2000's
Note: All specifications subject to verification
Loading Fee: $500

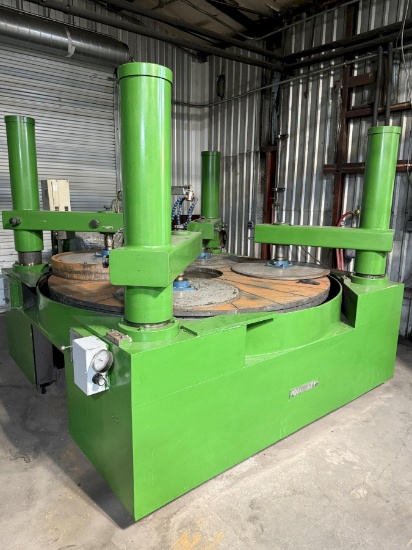

84 Spitfire Model SP-F888-84PNLC Lapping Machine
Model: SP-F888-84PNLC
S/N: 7609-84PNLC-1549
Year: N/A
Location: Lawndale
General specifications:
Max. workpiece dia.: 84"
Table dia.: 85"
Table motor: 30 HP
Table rotation: CCW
(4) 33" dia. x 2" high work retaining rings
(4) 32" dia. pressure heads
Pressure heads rise & lower on (4) 7-1/8" dia. posts
Air powered
Manual adjustment: Concave / Convex condition
(2) Slurry pots with flow controls (4) heads
Note: All specifications subject to verification
Loading Fee: $750

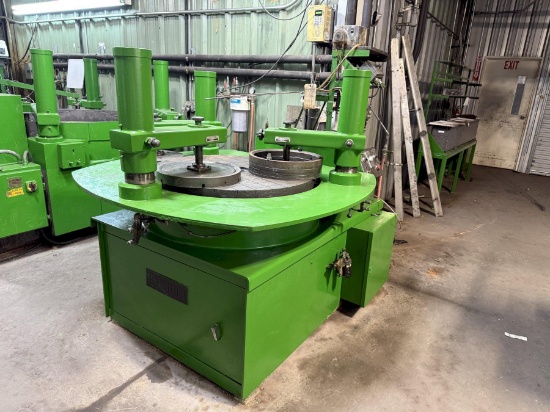

36 Spitfire Lapping Machine
Model: SP-GYR/ 3-36PNLC
S/N: 9009-36PNLC-43749
Year: N/A
Location: Lawndale
General specifications:
Max. workpiece dia.: 84"
Table dia.: 85"
Table motor: 30 HP
Table rotation: CCW
(4) 33" dia. x 2" high work retaining rings
(4) 32" dia. pressure heads
Pressure heads rise & lower on (4) 7-1/8" dia. posts
Air powered
Manual adjustment: Concave / Convex condition
(2) Slurry pots with flow controls (4) heads
Note: All specifications subject to verification
Loading Fee: $500
48 Speedfam Model GYR 48 Lapping Machine
Model: GYR 48
S/N: GYR48-4P00466034-1012
Year: N/A
Location: Lawndale
General specifications:
Max. workpiece dia.: 48"
Plate speed: 63 rpm
Machine weight: 6500 lbs.
Note: All specifications subject to verification
Loading Fee: $500
48 Speedfam Lapping Machine
Model: Speedfam 48
S/N: SNF-48 BTAW-533
Year: N/A
Location: Lawndale
General specifications:
Table dia.: 48"
(4) 20" dia. hardened steel rings (18" I.D.)
Plate speed: 63 rpm
Max. part size: 17.5"
(4) pressure heads w/ max. down pressure up to 1260 lbs. per head
Main motor: 10 HP
Note: All specifications subject to verification
Loading Fee: $500
Rosler E92-So - Drag Finishing / Vibratory Finisher with 3 Bowls and Centrifuge Water Recycle Unit
Dissasembled for Shipping
Location: 1335 Boyles Suite E
** FROM MEDICAL DEVICE FACILITY **
Work bowl 700 millimeters
Work bowl height max.450 millimeters
Work bowl volume150 (l)
Capacity700 SF
Rosler Drag Finisher: (For gentle surface finishing of delicate components that shouldnt touch during the finishing process)
R 4/700 SF with 4 work stations (spindles) and a work bowl diameter of 700 mm
Work bowl (mm) 700
Work bowl height max. (mm) 450
Work bowl volume (l) 150
Number of work stations (pcs) 4
Space requirement l x w x h in (m) 1.3 x 1.5 x 2.6
Rosler Zentrifuge Z-800 Centrifuge:
Output Maximum317 GPH
Load Maximum88 Lbs.
Speed Maximum2,850 RPM
Load Temperature Maximum122 Deg. F
Room Temperature Maximum104 Deg. F
Inner Rotor Diameter15
Electrics460V/3Ph/60Hz
Dimensions Actual72 x 36 x 62(H)
Weight From Tag770 Lbs.
*All specs are subject to buyer review

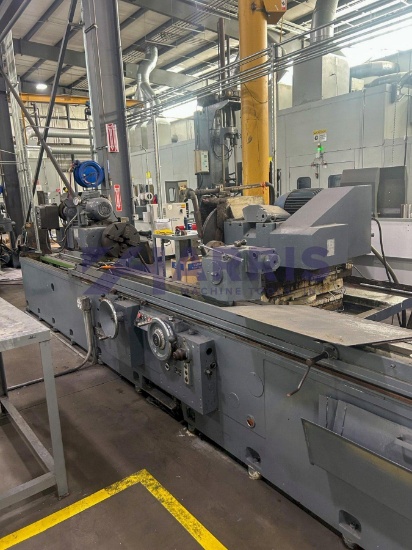

18 x 120 Livnica Kikinda type D15-3000A/230 Universal Cylindrical Grinder
Loading Fee: $750

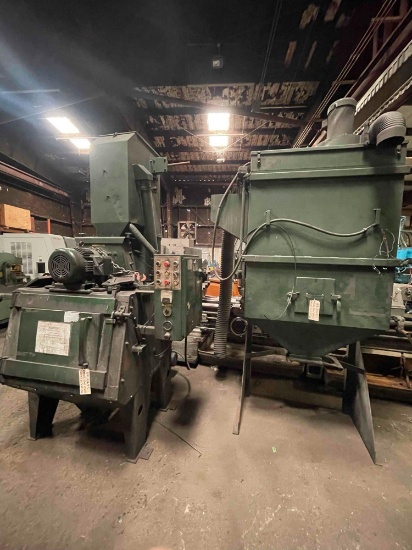

36" x 20" Goff Shot Blast Cabinet
Model: N/A
S/N: N/A
Year: N/A
Location: Lawndale
General specifications:
Cap.: 36" x 20"
Note: All specifications subject to verification
Loading Fee: $250

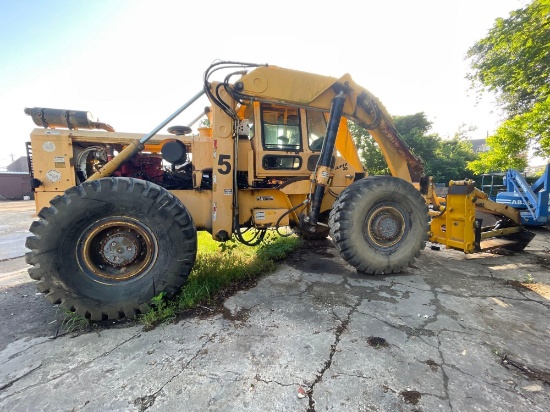

2011, 20,000 lb. Pettibone Super 20 Carry Lift, Rough Terrain Forklift with Pipe Baler
** MACHINE HAS SOME ELECTRICAL ISSUE **
Location: Lawndale
Loading Fee: $1000

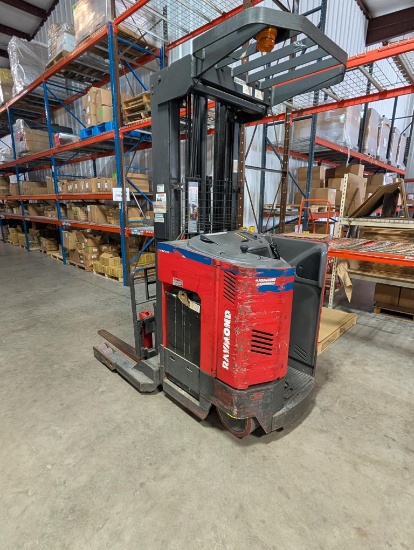

2005 4,000 Lbs Raymond Forklift with charger
6,131 hours, 4,000 Lbs lift capacity
Location: Lawndale

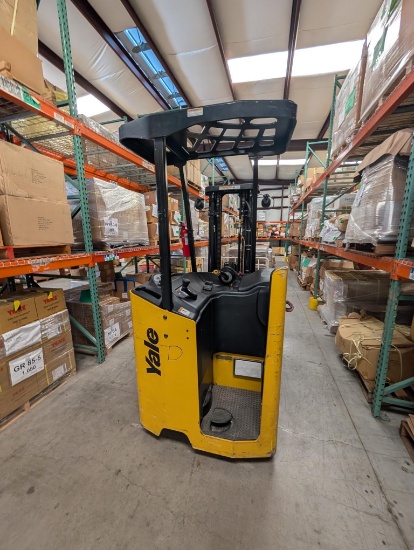

2015 Yale Forkilft with Charger
1,163 Hours,
2,850 Lb lift capacity
Location: Lawndale

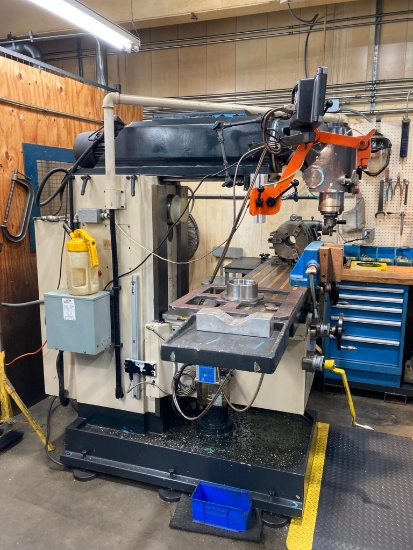

Summit Universal Milling Machine
Model: 3UH-POA-Q
S/N: N/A
Year: N/A
Location: Lockwood
General specifications:
Table Size: 13.7" x 59"
Table Swivel: +/- 45
Table Longitudinal Travel: 46"
Table Cross Travel: 15.75"
Knee Vertical Travel: 20"
Column to Table Center: 7" - 22.75"
Horizontal Spindle Speeds: (12) 48 -2160 RPM
Horizontal Spindle Taper: #50
Vertical Spindle Speeds: (12) 45 - 1960 RPM
Vertical Spindle Taper: #50
Longitudinal Feeds: 0.4 - 47 IPM (Inf. Var.)
Cross Feeds: 0.4 - 47 IPM (Inf. Var.)
Vertical Feeds: 0.2 - 23 IPM (Inf. Var.)
Rapid Traverse: 47 IPM
Main Motor: 10 HP
Over Arm Motor: 5.5 HP
Feed Motor: 3 HP
Coolant Pump Motor: 0.1 HP
Electrics: 440V/3Ph/60Hz
Weight (Approximate): 7040 Lbs.
Includes:
Pendant Control
Acu-Rite 3-Axis DRO
Compound Vertical Head Swivel
Work Light
Lot of Tooling as shown
NOTE: vise and dividing head in plant photo not included
Note: All Specifications Subject to Verification
Loading Fee: $500

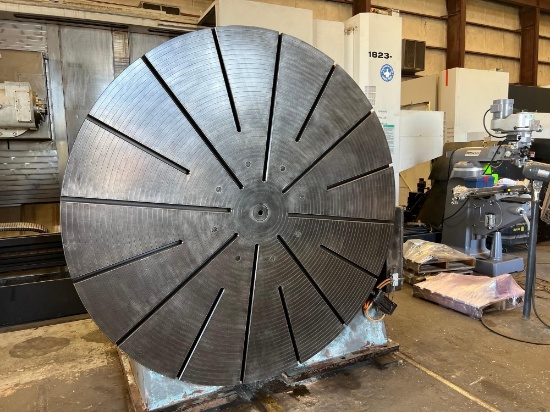

84" Rotab Model 84-2 2-Axis CNC Tilting Rotary Table
Model: 84-2
S/N: 115
Year: N/A
Location: Lawndale
General specifications:
Cap.: 84"
Table dia.: 62"
Radial T-slots: 16
Load cap.: 6500 lbs.
Table centerline to floor (table vertical): 46"
Table centerline to floor (table horizontal): 62"
Machine weight: 14,400 lbs.
Note: All specifications subject to verification
Loading Fee: $500

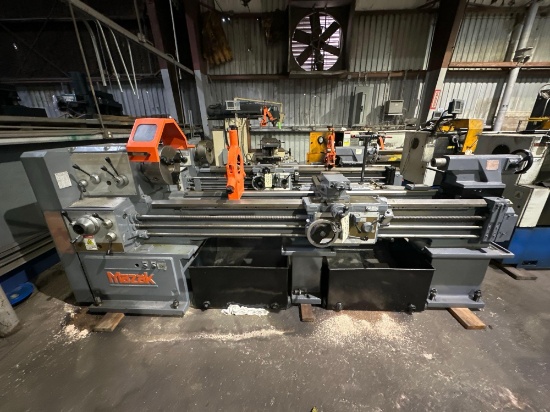

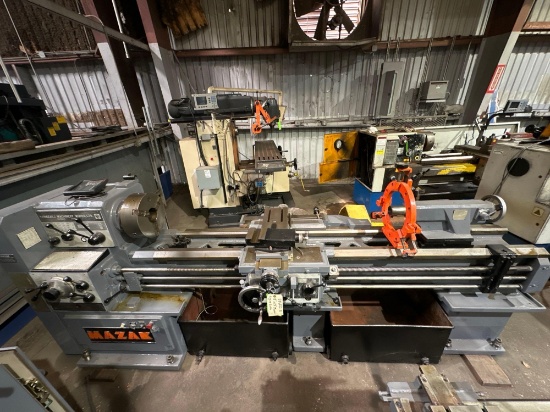

18 x 80 Mazak Engine Lathe
Model:
S/N: 33921
Year:
Location: Lawndale
General specifications:
Spindle speeds: (12) 25 - 1500 rpm
Includes:
3-jaw chuck
Tailstock
Steady rest
Chip pans
Inch/Metric threading
Note: All specifications subject to verification
Loading Fee: $500
20 x 80 Mazak Engine Lathe
Model: MK530 x 2000G
S/N: 88803
Year: 1991
Location: Lawndale
General specifications:
Spindle speeds: (12) 25 - 1500 rpm
Includes:
3-jaw chuck
Chuck guard
Tailstock
Steady rest
Chip pans
Inch/Metric threading
Note: All specifications subject to verification
Loading Fee: $500

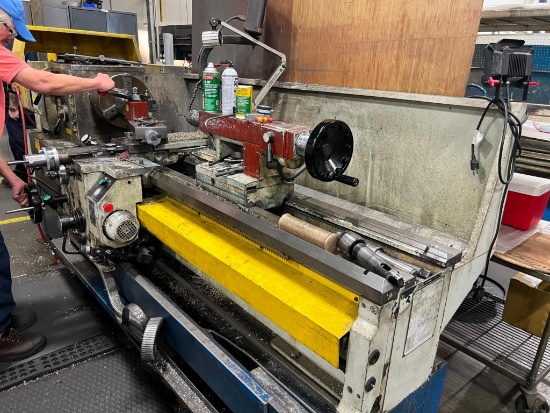

20 x 60 Summit Gap Bed Engine Lathe
Model: 20X60B
S/N: 37607
Year: N/A
Location: Lawndale
General specifications:
Swing over bed: 20"
Swing over cross slide: 13.25"
Swing in gap: 30"
Dist. between centers: 60"
Spindle speed: 1500 rpm
Spindle bore: 4"
Machine dims: 114" x 44"
Machine weight: 7200 lbs.
Includes:
Newall DRO
Dorian tool post
4-jaw chuck
Taper attachment
Steady rest
Rapid traverse
Note: All specifications subject to verification
Loading Fee: $500
FadalModel 2216 CNC Vertical Machining Center
Model: 2216
S/N: 012005118410
Year: 2006
Location: Lawndale
General specifications:
Table size: 16" x 38"
X axis travel: 22"
Y axis travel: 16"
Z axis travel: 20"
Spindle speed: 10,000 rpm
Spindle motor: 24 HP
Spindle taper: CAT 40
Includes:
GE Fanuc Series 18i-MB CNC control
Tool changer (20 + 1)
Fourth Axis
Note: All specifications subject to verification
Loading Fee: $750
30" x 120" Kingston Hollow Spindle Lathe with 12.5" Spindle Bore
Model: HK3000
S/N: 03701111B
Year: N/A
Location: Lawndale
General specifications:
Swing over bed: 30"
Swing over cross slide: 20.75"
Distance between centers: 118"
Bed Width: 22"
Height of center from floor: 46.44"
Spindle bore: 12.5"
Taper of Spindle Bore & Center: 3/4" Taper per Foot
Spindle Nose: ASA A2-20
Spindle speeds: (16) 5 300 rpm
Spindle motor: 20 HP
Longitudinal feeds: (40) 0.0024 - 0.0337 IPR
Cross feeds: 1/2 of longitudinal feeds
Leadscrew dia. / threads per inch: 1.875" / 2 TPI
Whitworth threads: (50) 1 - 28 TPI
Metric threads: (41) 1 - 28 mm
Module threads: (20) 0.5 - 7 M
D.P. threads: (40) 4 to 56 D.P.
Compound travel: 9.75"
Cross slide travel: 21.25"
Tailstock quill travel: 11.75"
Tailstock quill dia.: 5.125
Tailstock center: MT 6
Floor space: 205" x 86"
Machine weight :17,700 lbs.
Note: All specifications subject to verification
Loading Fee: $750
30 x 120 Vantage Model 30120 Engine Lathe
Model: 30120
S/N: 13027
Year: N/A
Location: Lawndale
General specifications:
Swing over bed: 32"
Swing over cross slide: 24"
Swing in gap: 48"
Distance between centers: 120"
Spindle speed: 840 rpm
Spindle motor: 25 HP
Spindle bore: 6"
Includes:
24" 3-jaw chuck
Quick change tool post
Taper attachment
2-speed tailstock
Thread dial
Inch/Metric threading
Rapid traverse
Note: All specifications subject to verification
Loading Fee: $750

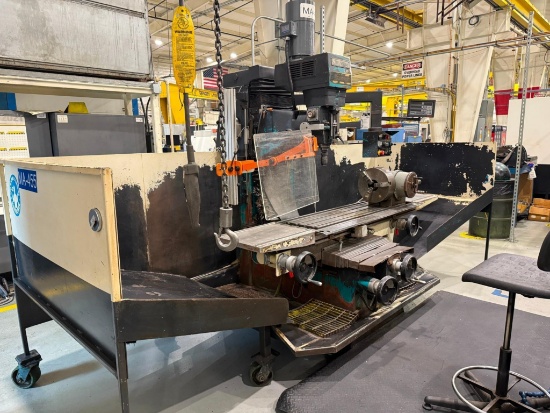

Sharp Model KMA-2 Vertical Milling Machine
Model: KMA-2
S/N: 4508
Year: N/A
Location: Lawndale
General specifications:
Table size: 17" x 74"
Table longitudinal travel: 47"
Table cross travel: 17"
Vertical head travel: 21"
Spindle nose to table: 4" - 25"
Spindle center to col.: 17"
Spindle speed: 1500 rpm
Spindle motor: 15 HP
Spindle taper: 50
Vertical housing feeds: 0.0025 - 0.01 IPR
Table feeds: 1-3/16 - 37 IPM
Machine dims: 12' x 7' x 8' H
Machine weight: 11,500 lbs.
Includes:
3-axis Newall DRO
Pendant control
Power draw bar
Rapid traverse
Auto Lubrication
Work light
Leveling pads
Note: All specifications subject to verification
Loading Fee: $500
Mazak Engine Lathe S/N: 31250
Model: N/A
S/N: 31250
Year: N/A
Location: Lawndale
General specifications;
Swing over bed: 20"
Distance between centrs: 80"
Spindle speeds: (12) 25 - 1500 rpm
Spindle bore: 3"
Includes:
4-jaw chuck
Chuck guard
Tool post
Tailstock
Steady rest
Taper attachment
Inch/Metric threading
Chip pans
Note: All specifications subject to verification
Loading Fee: $500
Atlas Vertical Milling Machine
Model: N/A
S/N: 021640
Year: 2002
Location: Lawndale
General specifications:
Table size: 16.75" x 72"
Table load cap.: 2000 lbs.
Table longitudinal travel: 41.3"
Table cross travel: 22.8"
Table vertical travel: 23.6"
Spindle speed: 5000 rpm
Spindle motor: 7.5 HP
Spindle taper: 40
Quill dia.: 4.1"
Quill travel: 6"
Machine dims: 98" x 80" x 84" H
Machine weight: 6270 lbs.
Includes:
3-axis Newall DRO
Manual 4th axis rotary table
Note: Vise shown in photos NOT INCLUDED
Note: All specifications subject to verification
Loading Fee: $500

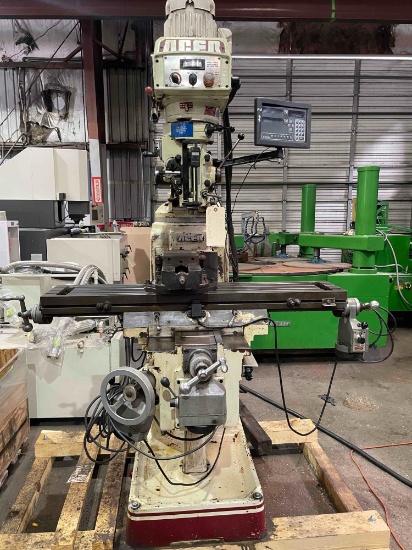

Clausing Vertical Milling Machine
Model: SUP8BVS40
S/N: 061485
Year: 2006
Location: Lawndale
General specifications:
Table size: 16.75" x 62"
Table load cap.: 2000 lbs.
Table longitudinal travel: 41.3"
Table cross travel: 22.8"
Table vertical travel: 23.6"
Spindle speeds: (low) 65 - 2580 rpm / (high) 130 - 5160 rpm
Spindle motor: 7.5 HP
Spindle taper: 40
Quill dia.: 4.1"
Quill travel:6"
Machine dims: 98" x 80" x 84" H
Machine weight: 7260 lbs.
Includes:
3-axis Newall DRO
Manual 4th axis rotary table
Tilting head
Note: All specifications subject to verification
Loading Fee: $500
ACER Model 3VKH Vertical Milling Machine
Model: 3VKH
S/N: 960501447
Year: 1996
Location: Lawndale
General specifications:
Table size: 10" x 50"
Table longitudinal travel: 32.5"
Table cross travel: 17"
Knee vertical travel: 19"
Ram travel: 20"
Spindle speeds: 60 - 4500 rpm (var.)
Spindle motor: 3 HP
Spindle taper: R-8
Power quill feeds: 0.0015 / 0.003 / 0.006 IPR
Quill dia.: 3.375"
Quill travel: 5"
Head swivel (R - L): 90 deg.
Head tilt (U - D): 45 deg.
Machine weight: 3300 lbs.
Note: All specifications subject to verification
Loading Fee: $250
