Auction Note: Fully functional Sand Screening, Drying, Separating & Loading operation. In operation until a few years ago. Note that buyers are responsible for rigging do...morewn, loading and transportation. No assistance will be provided.

Location: 1470 North Main, Mount Pleasant, Arkansas – This location is south off Highway 69 about ½ mile. Mt. Pleasant is about 20 miles northwest of Batesville, Arkansas...more. *GPS coordinates are (35.971977846142664, -91.77909255593602) for the exact location.

Type Auction - Public Online Auction. This will be an online only auction. Early Bidding & Maximum Bidding will be available beginning several days before the auction. Bi...moredding will begin a few days before the auction. You can pre-bid throughout the process. You can also enter a maximum bid and Proxibid automated system will bid for you along the bid increments. You can bid during the closing of the auction as well. If a bid is submitted within the last minute of bidding a 60+ second extension will be added.

Buyers Premium: All Buyers, Both Onsite And Online, Will Be Charged A 10% buyer's premium on all purchases. An additional 4 % Will Be Charged For The Online Bidding Servi...morece Resulting In a Total Of 14 % Buyer's Premium.

Inspection – Buyers are encouraged to inspect items before bidding. Inspection at this yard is available the day before the auction where Blackmon staff may be onsite. To...more inspect early contact Billy at 501-352-4703 to see if there is availability.

Equipment Removal – Start planning even before you start bidding! Buyers are responsible for rigging down, loading and transportation of all items. No assistance will be ...moreprovided. Please have all purchases removed within 60 days of the auction if possible. This property does not belong to Oakley nor Blackmon. Bring proof of insurance, send proper equipment and operators and trailers. Be considerate of property owner and all other buyers.

Shipping – Neither Blackmon Auctions nor the seller will package items for shipping or arrange shipment of items. Buyers are responsible for removing and transporting all...more purchases.

Condition of Equipment – All items are selling in the standard auction tradition, As Is, Where Is. The information we are supplying here is in no way to be considered per...morefect or as a promise or guarantee of functionality or specifications. Oakley & Blackmon put forth sincere efforts to gather info and provide pictures. You are welcome to do your own inspection or email a request for larger photos to billy@blackmonauctions.com.

Blackmon Auctions is currently searching out potential rigging companies and maybe a scrap company that might take the parts of the lots you don’t want. No promises but w...moreorking on it.

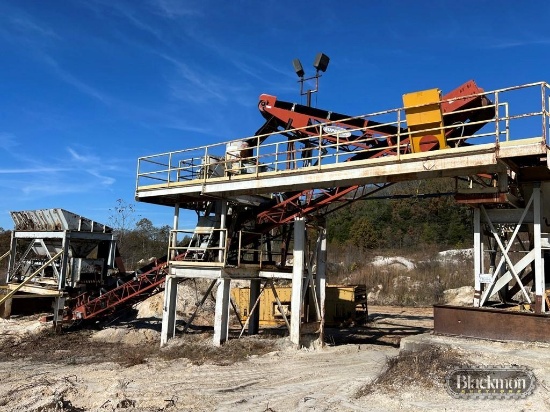

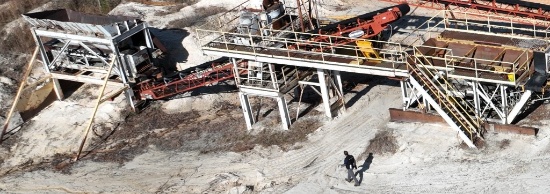

Hopper/Crusher/Conveyor/Screen – The following (4) items are selling together due to the fact that they are physically intertwined and might make the trip more worth it for the buyer.

- Feeder Hopper with Conveyor – 13’6” c to c

- Superior F30x60 PFTC-M Belt Conveyor, S#46464 w/Belt-Way Scales – Appears to have been built in 2009 - #6 - Superior -58’c to c, Tail pullley missing, 5” idlers; wing tail pulley; lagged head pulley; 30” belt 3 ply330; drive intact; Has a dual idler weigh scale attached (probably outdated?); overall good/fair shape – From under the feeder hopper, through under the SandMax crusher and to the shaker screen – Reddish

- Trio Shaker Screen on Platform and on Ground – Missing Parts

- Remco SandMax 250 Crusher, Model SD-Sand 250-304-12, S#250-0810-132, On Legs
...more

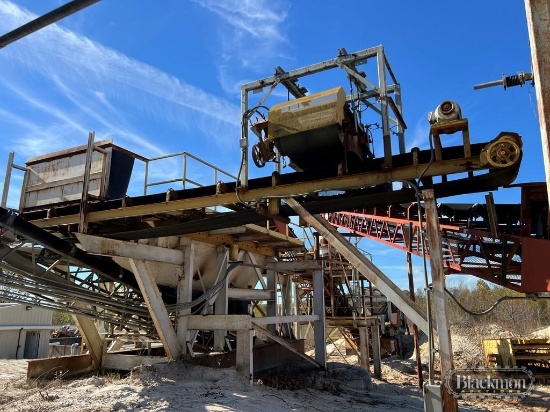

Cross Conveyor with Magnet, 32’ c to c...more

Superior F30x60 PFTC-M Belt Conveyor, S#46465, 58’ c to c; Ppi idlers ; wing tail pulley; lagged head pulley; 30” belt; 3 ply 330; splice is vulcanized; drive intact; ove...morerall good/fair shape – Reddish

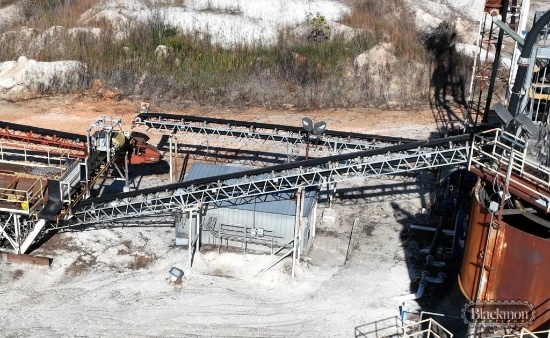

Conveyors - Two Gray Conveyors selling together -

Belt Conveyor, # 3 conveyor - 92’ c to c, From feeder hopper to phoenix, 24” belt; 3 ply 330; 4” idlers; wing tail pulley; motor and gearbox in good shape; overall good/fair shape

Belt Conveyor - North side of Phoenix Process Equipment going from Dewater Screens to Superior Belt Conveyor, BG 3 machine guard bottom, 76’ c to c
...more

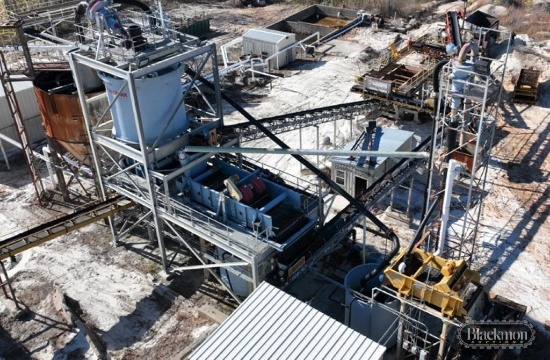

Phoenix Sand Classifying & Dewatering System selling as a group – Information partially provided from secondary source and has not been 100% confirmed but can be used as a guide.

Phoenix 7x20 Sand Classifying Screen (Information from Phoenix - Page 2 of 7 under Classifying and Dewatering Screens) Model 7X20-SC1 Sand Classifying Screen S#0811629 - Single Deck Horizontal, Side Plate Apex Design, 3/8" THK Plate/Reninforced Mechanism Plate, Welded Stiffiners, Base coil spring with mounting, Support Frame for High Open Area XIF System, Rubber Lined Deck, Mechanism GH400 V-Belt Drives, Guards and Belts, Feedbox with 3/8" AR Liner, Screen assembled and tested, Drive Motor 20 HP - 1775 RPM, NEMA C, 480/360, Complete Spray System with (4) 2.5 " spray bars fitted with 3/4 Jet Nozzles, Inline 6"dia (4) way manifold system including (4) valves, 1.5 dia hoses, clamps and hardware, Direct Mounted on H-Frame X20SDH XIF Polyurethane Decking System, Opening size 0.5mm, Marked as #30

Single Deck Dewatering Screen & Shaker -South – (Phoenix provided information - page 2 of 7), Model 4'x10'-DS-1 Serial # 0811629, 4'X10' Single Deck Dewatering Screen, High Frequency Horizontal APEX Design, 3/8" plate, reinforced mechanism plate, Welded Vert Stiffeners, Base mounted for steel coil springs, Mounting Package - 40 de. Feed X 5 Deg, Inclined, Extreme Rubber lined deck and pipe bars, Mechanism - GH300 -.25-.26 Throw @ 1090 RPM, Total Load 20-23 HP Base mounted rubber springs, Polyurethane Surface Decking - 0.5 mm

Vibrating Shaker – Tons Per Hour Brand

Phoenix Classifier

Slurry Cyclone

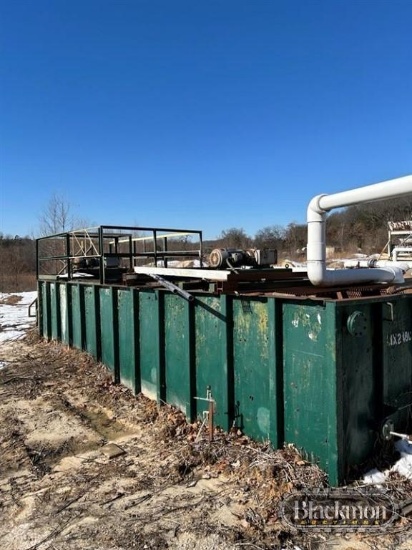

(2) Ground Level Steel Tanks under the dewatering & vibratory screens

Gorman Rupp Pumps and Electric Motors
...more

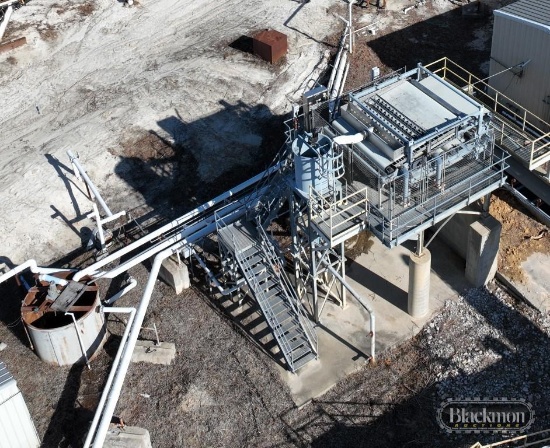

Phoenix WX3.0G6 Belt Filter Press System – S#0811629, Steel Collection Tank, Sediment Vats
...more

Load Out Conveyor, 60’ c to c, from mixer sludge unit to Truck Load Out Structure, 36” wide, 5 inch idlers,

Truck Load Out Structure - 17’ W x 23 L x 18 high
...more

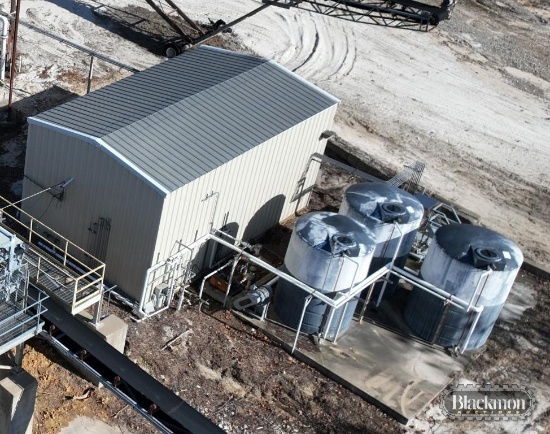

Water Treatment Shed with One -1650 gal tank 85"X74" Anionic Polymer Mix Tank with 16" lid & 18" opening in top And One - 1650 gal tank 85"X74" Anionic Polymer Aging Tank with 16" Lid. Various Pumps in the Building – All in Shed is 20’Wx 33’ L, All steel,

Three plastic liquid tanks by treatment shed - 6k gallons each
...more

Mobile Conveyor - #1 on Larry’s list - Serial # 06261RS, 80’ c to c; 30” belt; 5” idlers wing tail pulley; 3ply-330, both tires shredded bad shape; splice is vulcanized; ...moremotor and gearbox in tact good condition; lagged head pulley – Grayish and just east of the classifying and dewatering system and treatment building

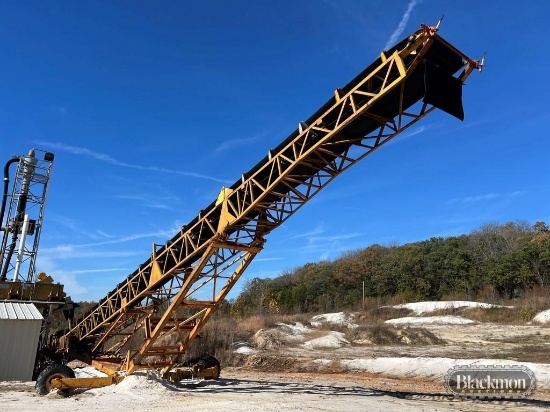

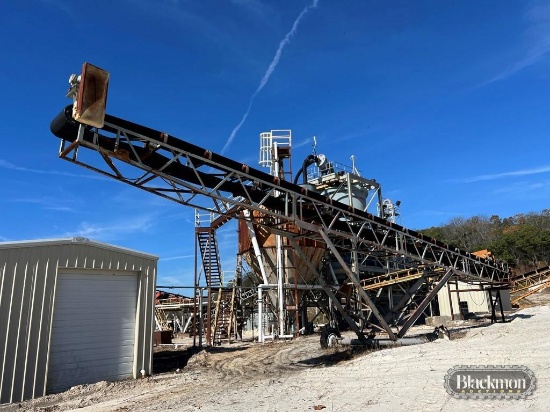

Radial Stacker Conveyor - #4 conveyor on Larry’s list. 100’ c to c. 4” idlers; 42” belt 3 ply 330 splice is vulcanized. Drive is center driven ; wing tail pulley drive in...moretact but one shaft in gear reducer is bent seals out – Yellowish and just north of the Phoenix Sand Classifying System

Loading Hopper & Conveyor...more

Conveyor from Phoenix Process Equipment to Mobile Conveyor - Conveyor #2 on Larry's List - 40’ conveyor from under, Phoenix system; 24” belt 3 ply 330; 4 inch rollers, pp...morei idlers and wing tail pulley; lagged head pulley; belt is mechanically spliced. Flacco fasteners. Motor and gear box in tact. Overall good/fair shape

Drying System,

Texas Crusher Systems 2009-10E Dryer Feeder Hopper - Model 2009-10E; S# EG2009-004, Texas Crush systems 806-983-2397. 16” channel frame; overall heavy duty. 36” feeder, belt, belt is bad, wing tail pulley. Drive system intact. Built on elevated platform.

Dryer RBR-SW Blower Fan w/Motor,

Screw Conveyor Into Be At Material Separator - Screw into leg mixer building, 3-1/2 shaft, 8” screw - shaft size,

Bucket Elevator Near Dryer Going Into Material Separators - 24”x 48” - one casing into surge hopper above building - up and down side of leg in same, casing. - no access to head platform, Tail shaft - 2-3/8, Manual take up, 5-10 foot sections - 6 ft tail boot, Metal buckets - 14-3/4 x 7-1/4 - seven bolt, 15 inch belt - now 14-3/4, Spiral tail pulley, Electrical Tag on Equipment labels it as Bucket Elevator 4....more

Rotex Separators / Cleaning System,

Bucket Elevators 1 And 2, Two bucket elevators in cleaner house. Near rotex. 12x48 casing size, Labeled bucket elevator 1&2, 3 inch shaft in tail boot

Rotex Separators, Rotex cleaners, structure, & platforms. Rotex Model MM3180-3 Separators S#sSO-41859/4 & SO-41859/0 – with Structure/Platforms,

Conveyors – (1) Conveyor 8; 8” channel frame; 35’; 24” head and tail pulley; head lagged; 5” idler; no belt; (2) Conveyor 9; 8” channel frame; 35’ c to c; 5” idlers; head pulley lagged : wing tail pulley; no belt: (3) Conveyor 10; 8” channel frame; 45’ c to c; 24” head and tail pulley. Head lagged ; no belt; wing tail pulley; (4) Conveyor 11; 8” channel frame; 35 ‘ c to c; wing tail pulley; 24” wide ; head pulley lagged, no belt,

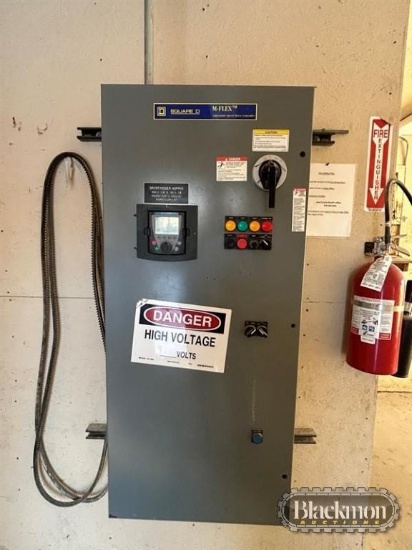

Control Room & Controls...more

Material Separator Building - 40 foot wide X 100 foot L, 3 man doors, 20 foot roll up doors - 2X, 60 foot high tall, 40 foot short part – There are and will be holes in t...morehis building after removal of the separators.

Cardinal Scales – Model 10090-EPR, 100-Ton Nom/Gross, 30 Ton CLC/SEC, nMAX 10K, eMIN 20LB, S#S0149350-A – with Printer, Read Out, & Weight Indicator...more
