Description
CYBEROPTICS SQ3000 Optical Inspection System with computer interface, YAMATO Drying Oven Model DX402, Model DX602,1 VECTRA Wave Soldering Machine (Wave Soldering Tunnel Heater)
6 workstation tables with AMSCOPE Microscopes - model MIC-209
JUKI MAIN ASSEMBLY LINE
1. Juki G-Titan Automatic Screen Printer model number G-Titan, serial number GL028DT, 2019  https://www.youtube.com/watch?v=42-jekHBHg8
5. BC 600 conveyorÂ
6. BTU International Pyramix 125A Reflow Oven. https://core-emt.com/pyramax-125a-reflow-ovenÂ
7. 11 Juki Electric Tape Feeders
8. JUKI Matrix Tray Changer TR6DNV
Â
2014 SUBARU LEGACY AWD PZEV
2014 Subaru Legacy Symmetrical AWD Partial Zero Emission Vehicle. Minor damage on driver and passenger sides.
VIN: 4S3BNAC64F3021845
LIC: 7HLC876
REG: OCT/2024
MILES: 142,773 miles
Note: The registration is currently in the QCA name. We will have to provide a release letter, sale receipt and statement of facts in order to obtain a title so it may be a month. We are currently working on that now. This vehicle will be sold provisionally.
CARDBOARD BALER
Marathon Vertical Baler model number V-6030HD OB.
Serial 402046-03. Floor mounted. Bring your tools.
QCA WASH ROOM AREA
DPF-300 https://www.youtube.com/watch?v=JfCljAobpFo
Ryobi bandsaw
Ryobi sander
Electrovert Aquastorm 200 DI wash system https://www.itweae.com/products/cleaners/aquastorm-200-in-line
Yamato constant temperature oven DKN912C
Unicomp pneumatic stencil cleaner SC-P2G https://www.bentec-int.com/product/1516/
Trident Automatic Defluxing System https://www.aqueoustech.com/trident-video
Zestron Bath Analyzer 20
Technical Devices Resin Tank cabinet
Rigid shop vac
Anti-gravity treadmill
3 large metro racks
Metal table
2 BRAND PALLET JACKS
Noblelift 5500lbs and Dayton 5500lbs. (No model number noted). Dayton model number 4YX97
GENIE GS-1930 SCISSOR LIFT
The Genie GS-1930 electric scissor lift has a maximum working height of 25 feet and a platform capacity of 500 lbs, with a 30-inch width and a 6-foot length.
Hours: 264,
Dimensions & Weight: Machine Width: 2.5 feet (30 inches), Machine Length: 6 feet, Height (Stowed): 6.92 ft, Height (Rails Folded): 5.75 ft, Weight: 3,209 lbs, Platform & Capacity: Max Platform Height: 19 feet, Max Working Height: 25 feet, Max Platform Capacity: 500 lbs, Deck Extension: 3 ft, Extended Capacity: 250 lbs, Mobility & Performance: Drive Speed (Stowed): 2.5 mph, Drive Speed (Raised): 0.5 mph, Turning Radius (Inside): 0 ft, Turning Radius (Outside): 5.08 ft, Gradeability (Stowed): 30%, Tire Dimensions: 12x4.5 in, Power & Controls: Power Source: 24 V DC (four 6 V 225 Ah batteries), Hydraulic Tank Capacity: 3.8 gal Controls: Proportional Drive: Dual front wheel, Brakes: Multiple disc brakes
QCA KITTING AREA ALL INCLUSIVE
Pallet Rack. Shipping materials. Computer stations, work benches, filing cabinets, rolling racks. All contents included. Does not include Baler or Car.
ACCVACS E1500V Sealer
SETRA QUICK COUNT Scale
DDM NOVASTAR GC-12 Counter
IMPULSE FOOT PEDAL SEALER
ZEBRA GK420D Label maker
COMPUTERS
6 Rolling Cart Metro Racks
ELECTRIC TOYOTA FORKLIFT
Toyota Electric Forkilift, model number 5FBE18. Sideshift with 2900lb capacity.
Hours: 10156.3 hours
Charger Assembly model number FR24CE510

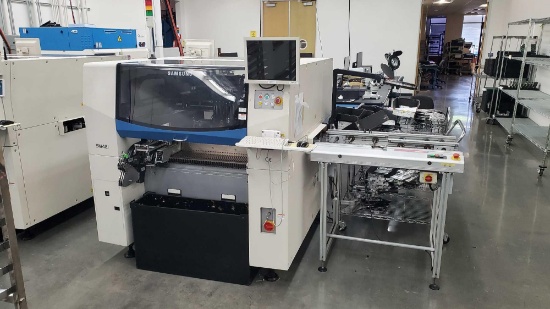

SAMSUNG SM421 PICK AND PLACE MACHINE
Samsung SM421 With Lynx PCB handler and 1 Rolling cart with approx 15 feeders. Cart measures 40x37x28 https://www.youtube.com/watch?v=UpmQOeN2EV0
QCA STOCK ROOM AREA
48 Storage racks full of PCB Assembly Components, 3 Rolling Metro Racks, Rolling Metal Cage, 2 Werner Fiberglass 8 foot ladders, Trash Cans, Rolling hand cart

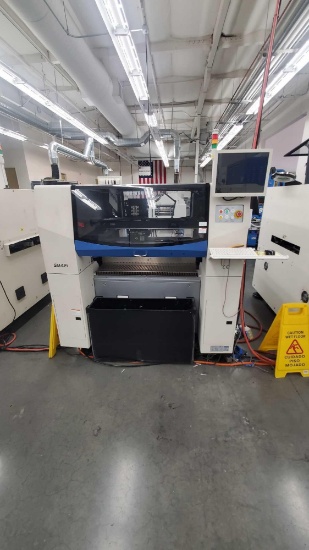

SAMSUNG SM421 PICK AND PLACE MACHINE
Samsung SM421 With 2 Rolling carts containing 40 parts feeders Lynx PCB handler
https://www.youtube.com/watch?v=UpmQOeN2EV0
NORDSON DAGE QUADRA 5 X RAY SYSTEM
XRAY INSPETION Quadra 5, Serial number XQ201922
Quadra NT Sealed-Transmissive X-Ray Tube, Tube power: < 0.35 m to 10 W, Geometric Magnification: 2,500X, Total 45,000X, Max Board Size: 29"x22.8", Nordson Dage Aspire FP - MegaPixel at 25fps with 50um pixel pitch, Long Lifetime CMOS Flat Panel Detector with Real Time Image Enhancements, 70 degree Oblique Views w/out loss of magnification, AXiS Active x-ray image stabilisation, Nordson Dage Gensys X-Ray Inspection Software, Nordson Dage QuadrGen PSU, Windows 10 OS, 24" Full HD 1920 x 1200 Primary LED Monitor.
https://www.youtube.com/watch?v=QGK08Oz5MKk
WIRE ROOM #1
Room full of wire spools, heat shrink tubing and racks. Various gauges and colors. Huge assortment. Inspection recommended to verify your own quantities. As is.
QCA INSPECTION AREA
LG Monitors x 4
AMSCOPE X 3
Dell computer
4 ESD work benches
Intertek inspection lamps x 3
BK Precision 815 meter
5 point rolling chairs x 5
GKG GL PLUS SCREEN PRINTER
GKG GL PLUS, Serial number 6L169HR
GL Plus printer offers an adjustable stencil X frame mechanism by a touch of pneumatically operated buttons without using any stencil adapter. The power of continuous improvement. Swappable Monitor Position, Automatic Stencil Wiper System, Arch Shape Squeegee Beam., FAC (Flexible Automatic Clamping) System, Paste Roll Height Monitoring System.
https://jukiamericas.com/pages/gl_plus_tuv
SURFACE MOUNT WORK STATION AREA
This is a large lot with tools and JUKI materials. Juki Feeders docks w/40+ feeders. 100 # 8mm feeders. Vibration feeders.
Desk station with 2 chairs,metro rack with parts, 4 drawer metal file cabinet, 3 drawer metal cabinet, blue test bench. AMscope. Light and 2 rolling chairs. 10 metro racks, 6 blue work stations. This is the surface mount work area along wall. Vidmar metal cabinet contains Bosh drill, Sawzall, skilsaw, Dewalt drill, 8 ton aluminum knockout punch, tool box, wire, miscellaneous maintenance tools.
WAVE SOLDER STATION ROOM AREA
VETRA ELECTROVERT WAVE SOLDERING SYSTEM:
TYPE VETRA, Serial number Ves3-30119, year 2021
Includes: 3 Presses, Roto Trim, Genesis Ultra sonic cleaner, Bench vise, Soldering pots x2, Shop vac, Locker of shop supplies, HAKKO FA-430-16, JENSON Global JGD400S, MARK-10, EXTECH CG204, AMSCOPE, Work lamps x4, Dymax 100-120V, Yamato DX602, 2 FLAMMABLE LOCKERS, 2 Rolling cart w/shelving, 4 METRO carts, Soldering bars, 2 metal tables, 2 Galvanized metal vent hoods.
INSPECTION AREA METRO RACKS
5 Metro Racks total. 2 measure 36x21x24, 3 measure 72x96x24 and 1 is 60x70x23. Contents not included. (Located along wall area)

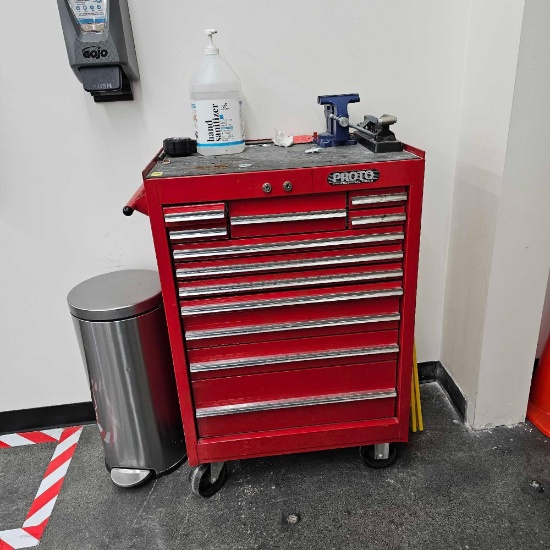

PROTO PROFESSIONAL TOOL BOX
12 drawers with contents. Miscellaneous hand tools, measuring devices. Considered mixed lot.
SERVER ROOM AREA
UniFi Network Dream Machine Pro
UniFi protect NVR Pro
UniFi network UDM Pro
UniFi network Pro 48PoE
Tripp-Lite Smart 1500LCDT
Dell Inspirion Tower 7010
Sonic roll Security panel
Atropine box
Filters
Dell & HP Laptop
Keyboards
Huanuo desk mounts Monitors x 4
Spare PC's
Bathroom supplies
Network TP links
Power cords
HOMAK PRO TOOL CART
Homak rolling tool cart with contents,1 RIGID vacuum. 3 safety cones, 1 Kobalt rolling tool bag with contents. (Located in cleaning area hallway).
CLEANING GEAR AREA
Crowd controller, rolling cart, safety ladder, 2 metal racks, cleaning gear, hydrogen water station.

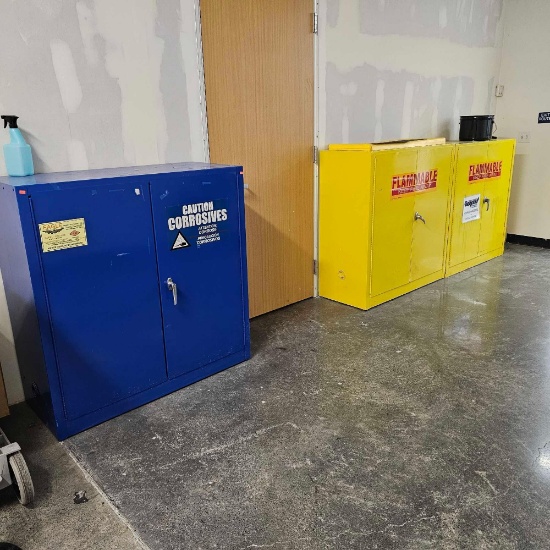

3 FLAMABLE STORAGE LOCKERS
2 yellow (no model number noted) and 1 blue Eagle model CRA-3010.
Each measure 43x45x18.
DELTA 6 PVA COATING MACHINE
The machine in the image is a PVA Delta 6, a flexible robotic system used for precise conformal coating and dispensing applications. It is designed for tasks like selective coating, potting, beading, and meter-mix dispensing in moderate to high volume manufacturing. https://www.youtube.com/watch?v=tp1syae0xMw
Lynx PCB conveyor, 2 stainless steel tables, 4 metro racks, 1 Bravia TV unknown condition, Spray paint cabinet Century Air Systems SS-330-DSH https://www.labequip.com/sentry-air-systems-ss330dsh-spray-booth.html
